Mini Drone V2

2025 | In Progress

After some unsuccessful flight tests of my original drone, I realized I would have to make some modifications to be able to achieve flight.

Hardware

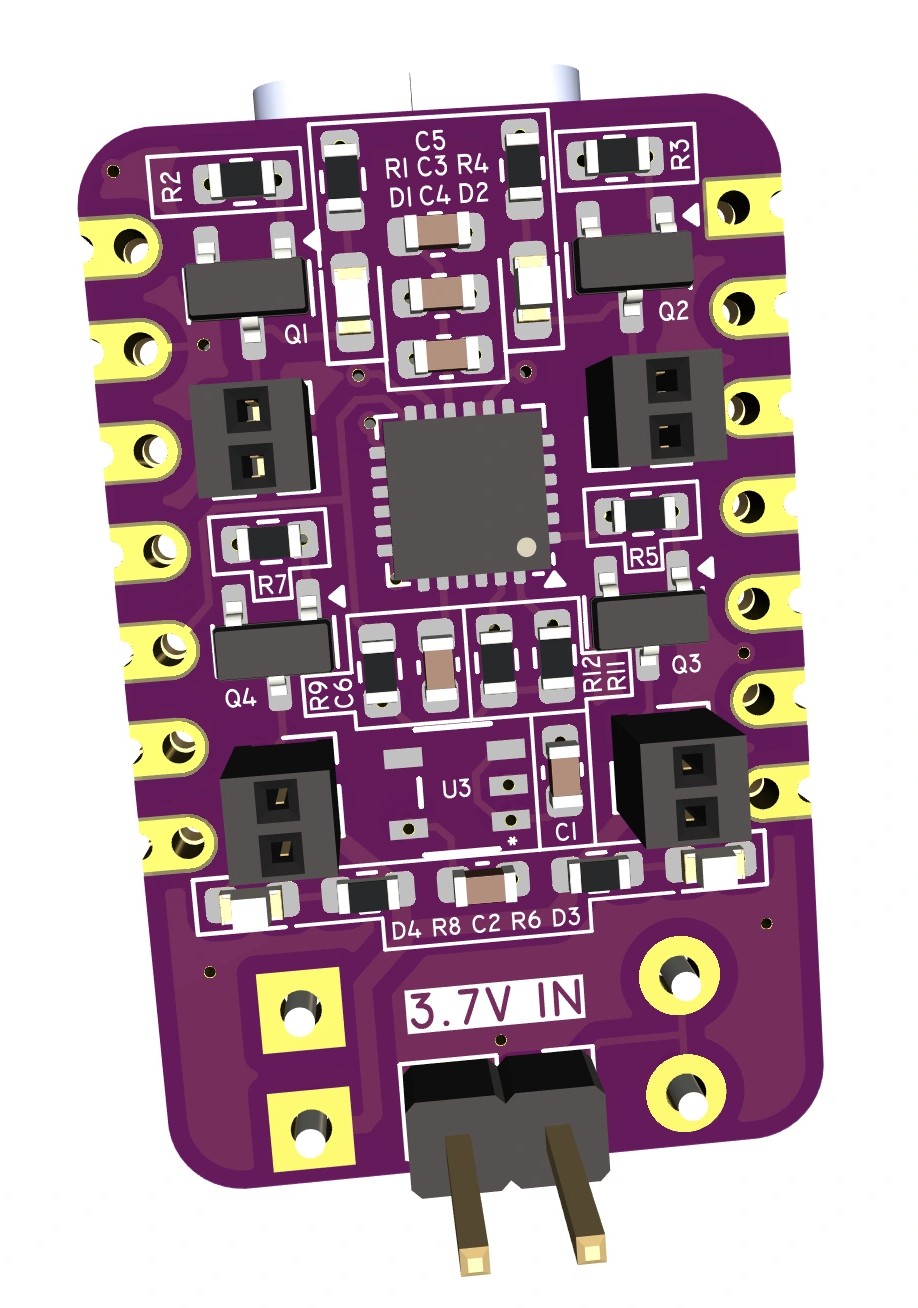

I started by designing a lower profile flight controller PCB which used the smaller ESP32-XIAO C6 microcontroller.

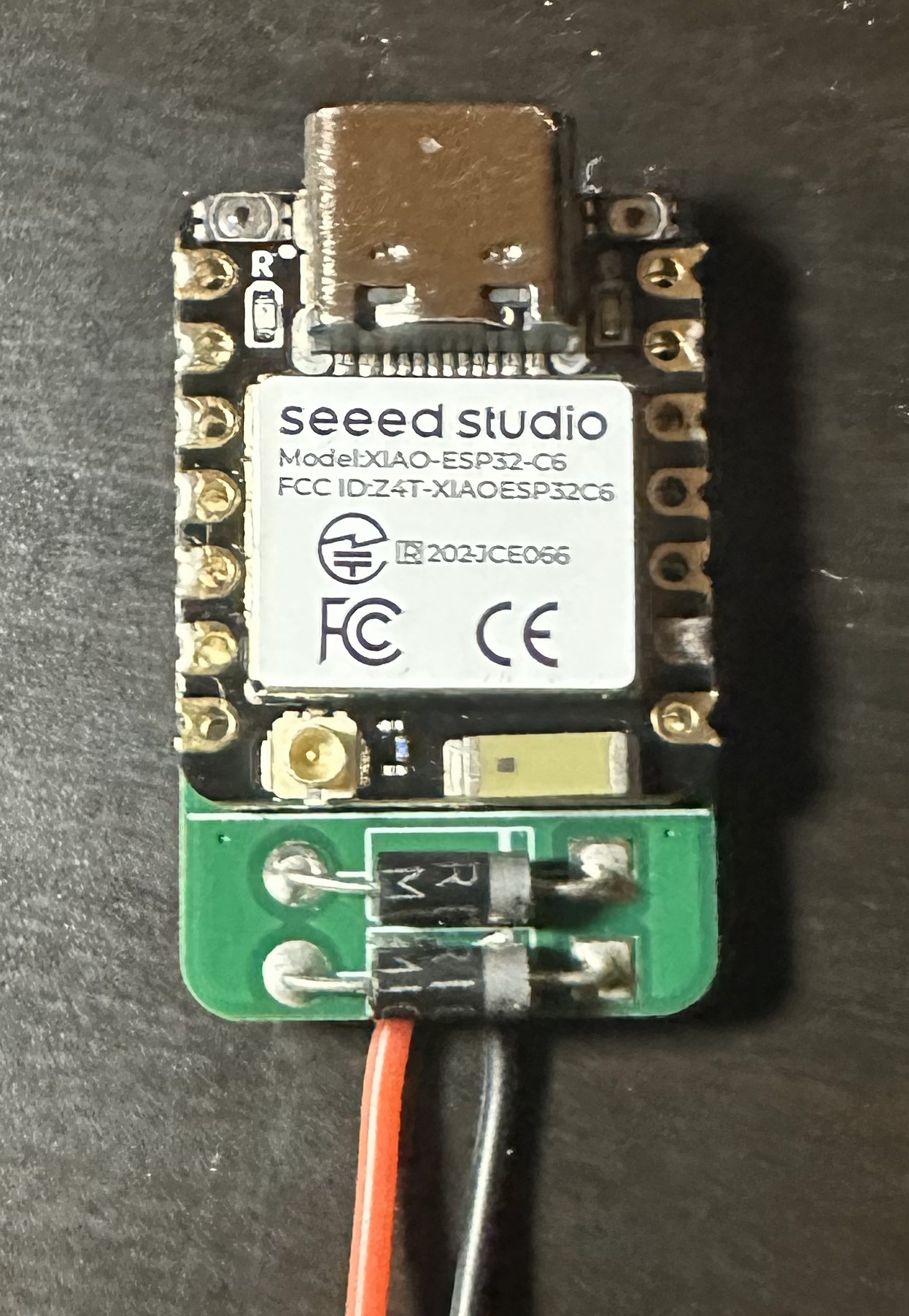

This low-profile PCB fits behind the footprint of an ESP32, featuring a built in IMU with I2C communication, four motor drivers, and status LEDs

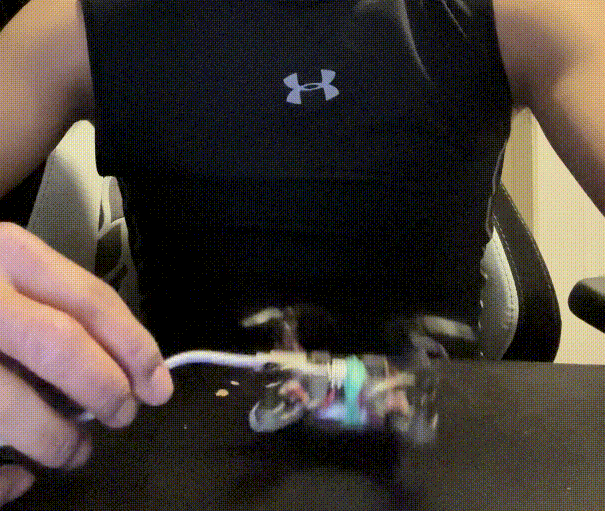

Initial thrust:

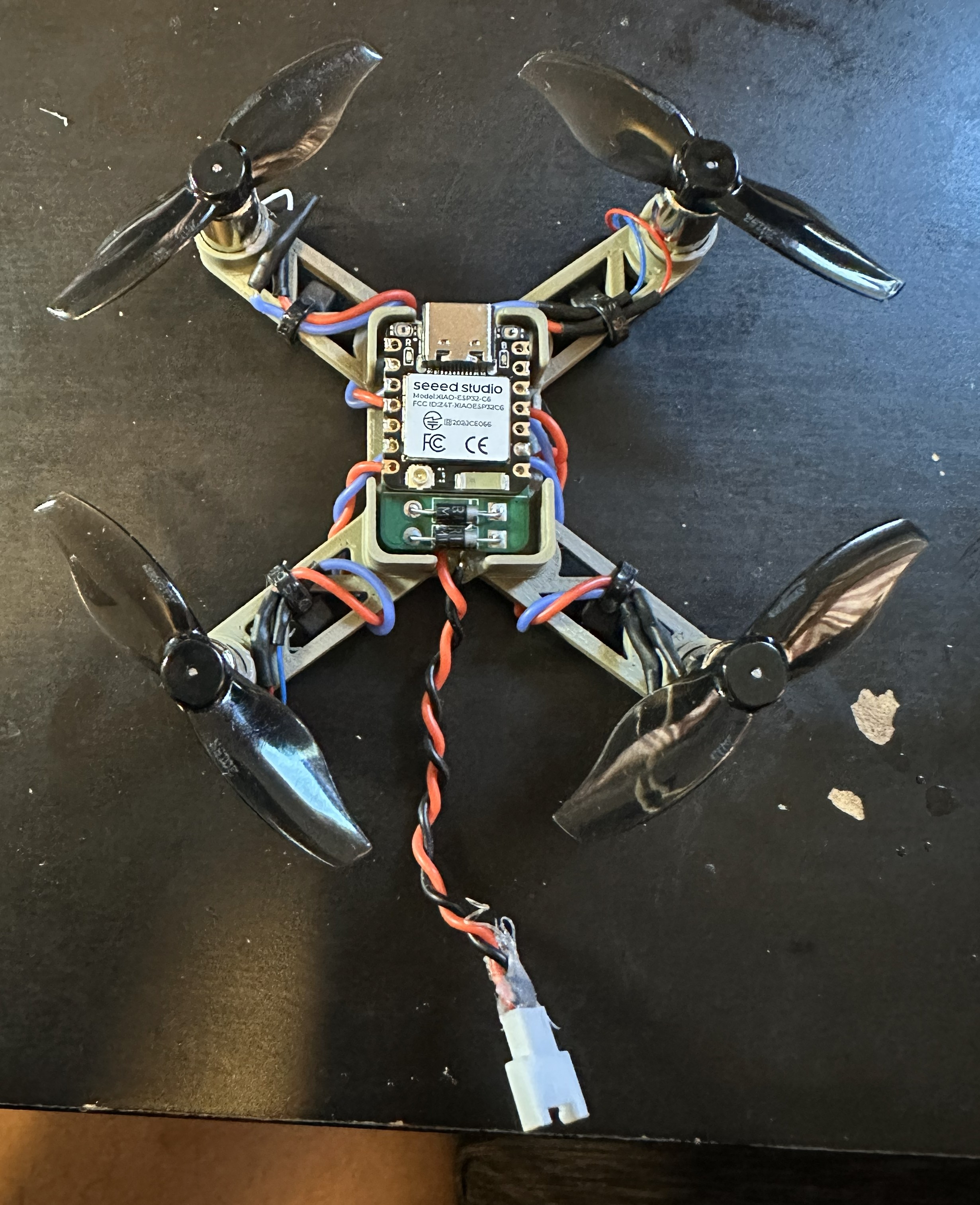

The PCB allowed for a much smaller and more symmetrical footprint. Additionally, I switched to smaller propellers.

Firmware & Controls

The firmware for thes project uses the ESP-IDF framework and freeRTOS for task scheduling. Core tasks include flight control + PWM setting, IMU reading and parsing, and periodic debug log value output. A webserver running in the background enables real-time data logging and user input.

Highlights:

- The MPU6050 IMU driver uses I2C and implements sensor fusion, using gyroscope + accelerometer data, and a Mahony filter to compute stable pitch + roll estimates. Additionally, I added an auto calibration feature that sets new pitch/roll offsets for accurate zeroing.

- Since I was now working in a multi-task, mixed frequency environment, traditional print debugging became messy. I implemented a global logging task that manages multiple data streams to display telemetry data at a consistent, organized rate.

Flight control algorithm:

New flight controller design:

After working with the mini flight controller for a while, I decided I needed to upgrade the board, notably switching from the 3.3V LDO to a step down converter for better efficiency, and switching away from the mini ESP32 to an integrated ESP32 module on the board with integrated USB-C programming. Additionally I switched to the more reliable BMI880 IMU.

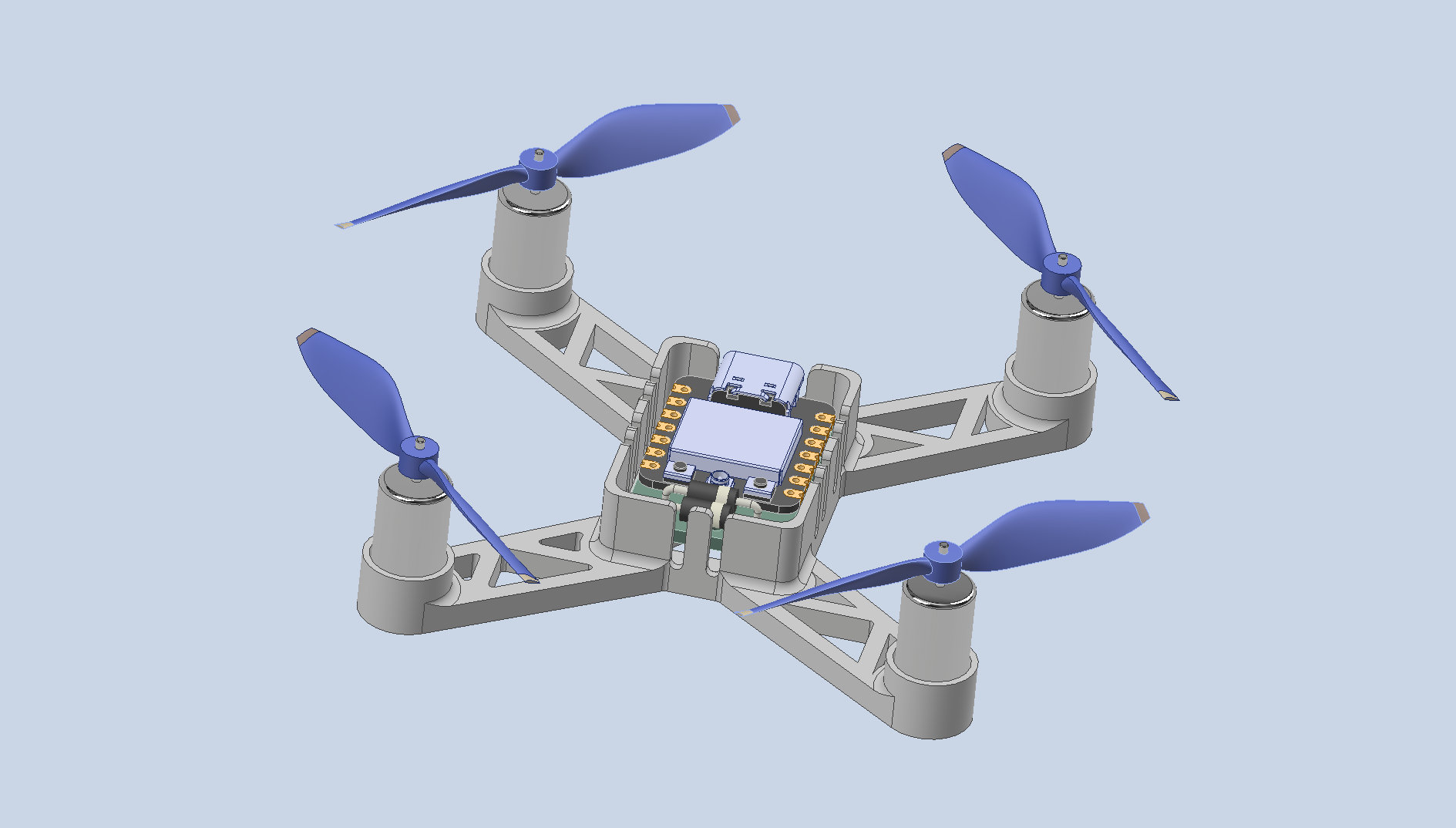

CAD model:

Click + drag to rotate
